customized Q235 Q345 6063 6005 solar carport structures bracket mounting system solar PV mounting

Brand Name : TIANFON

Model Number : TF-C001

Certification : SGS,ISO 9001,ISO 14001,OHSAS 18000

Place of Origin : CHINA

MOQ : 5 set

Price : USD500-1000/set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30MW/month

Delivery Time : 15-25 work days

Packaging Details : Carton box,wooden pallet,belt bundle packing and other kinds of package ensure the products safty and waterproof.

Name : PV Carport Mounting System

Size : customized

Thickness : 0.5mm-15mm

Feature : Easy & Quick Installation

Material : Q235,Q345,6063,6005

Surface Treatment : Hot-Dipped Galvanization Or Anodizing

Application : Private, Government and Enterprises Parking Lot

Installation Angle : 5~30°

Wind Load : ≤60m/s

Snow Load : ≤1.4KN/m²

Warranty : 10 years warranty and 25 years duration

Port : Tianjin, Shanghai, Qingdao

Contact Now



Factory supply Q235,Q345,6063,6005 solar carport structure mounting system pv carport solar brackets


1. Carport Parameter :



  Snow Load   up to 1.4KN/m2
  Wind Load   up to 60m/s
  Installation Angle   5~30degree
  Width of space   2.5~3m
  Length of space   6m
  Color   Natural or Customized
  Surface Treatment   Hot-Dipped Galvanization or Anodizing
  Rows:   4/5/6
  Span(E-W):   5000mm


Lowest height: 2.5m



Application: Private, Government and Enterprise’s Parking Lot


Material: Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement. / Q235 hot dip galvanizing Coating over 65um


Standard ground clearance: 2500mm


Support system: columns, inclined beams, purlins


Fastener: Stainless steel SS304


Warranty: 10 years

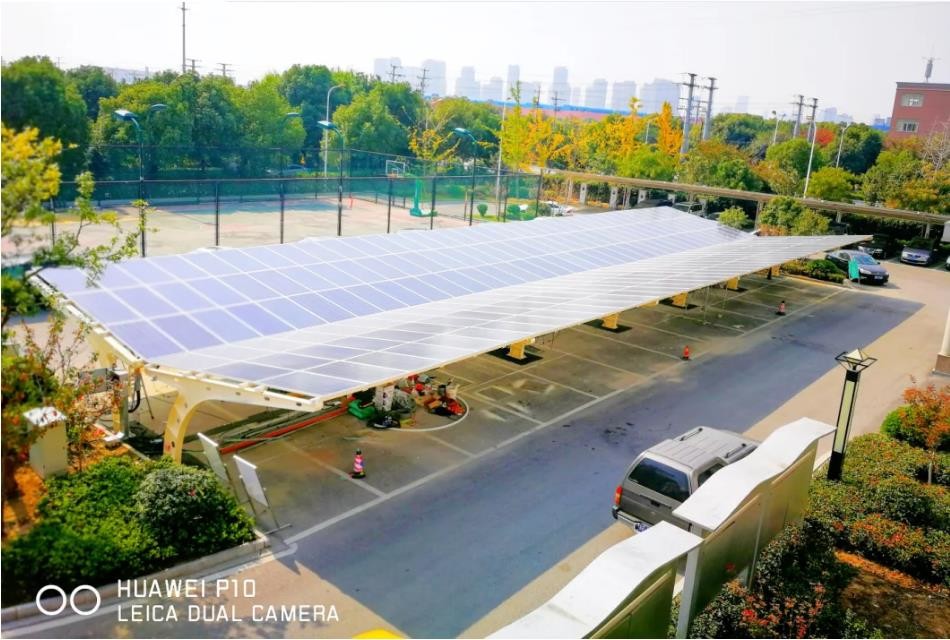

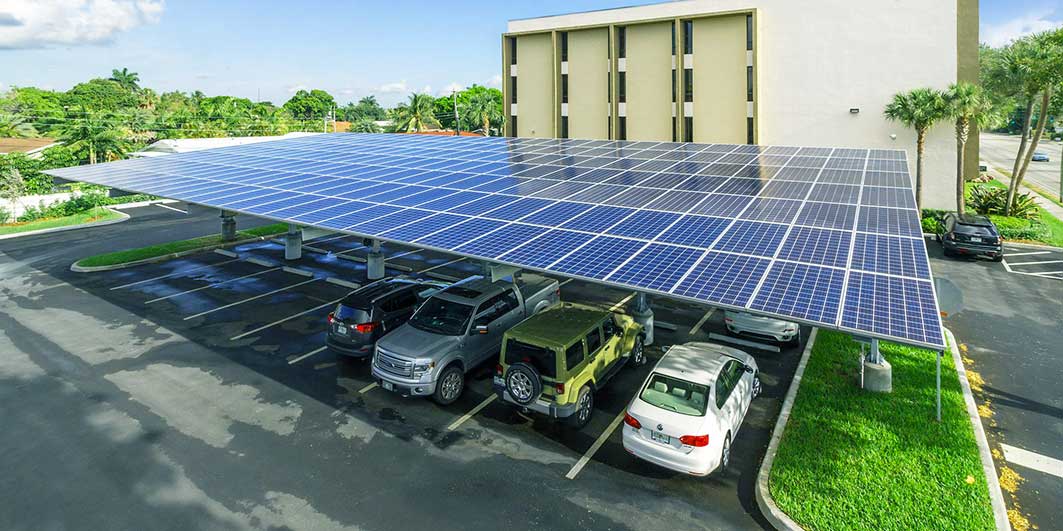

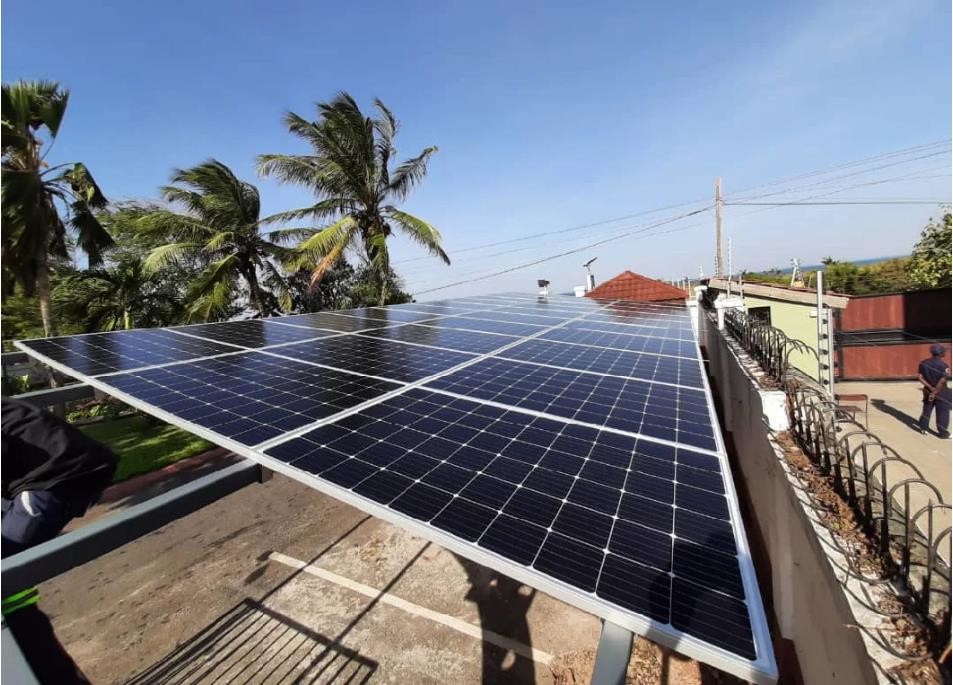

2. Application:

customized Q235 Q345 6063 6005 solar carport structures bracket mounting system solar PV mountingcustomized Q235 Q345 6063 6005 solar carport structures bracket mounting system solar PV mountingcustomized Q235 Q345 6063 6005 solar carport structures bracket mounting system solar PV mountingcustomized Q235 Q345 6063 6005 solar carport structures bracket mounting system solar PV mounting

customized Q235 Q345 6063 6005 solar carport structures bracket mounting system solar PV mounting

3. Company profile:

customized Q235 Q345 6063 6005 solar carport structures bracket mounting system solar PV mounting

4. Main products:

customized Q235 Q345 6063 6005 solar carport structures bracket mounting system solar PV mounting

5. Certificates

customized Q235 Q345 6063 6005 solar carport structures bracket mounting system solar PV mounting

6. Packaging & Shipping:

customized Q235 Q345 6063 6005 solar carport structures bracket mounting system solar PV mounting

☼ Port: Tianjin, Shanghai, Qingdao


☼ Payment Terms: L/C,D/A,D/P,T/T


☼ Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits



☼ Packaging Detail: Export Standard Carton With Pallet, interleaving each profile to protect the surface



7. Necessary information:

For the solution and quotation, we need some details as the following:

No. Item Remarks
1 Location, Country of the Projects
2 What's Total Capacity (Watts) of PV Carport ?
3 Steel Carport or Aluminum Carport?
4 How many Parking Space?
5 What's the total size of the whole Carport?Better sending CAD drawing
6 Wind Load: xx m /s ?
7 Snow Load: kN/㎡
8 What’s watts of each module?
9 Module Size ? (Length * Width * Thickness)
10 What’s the Angle of Installation of solar panel?
11 When will the PV Carport be installed?
12 Layout of Solar Modules(Landscape or Portrait installation)
13 parking enviorment picture.
14 off-grid or on-grid project?
15 your any other requirements ?
